ABOUT SV RESILIENCE

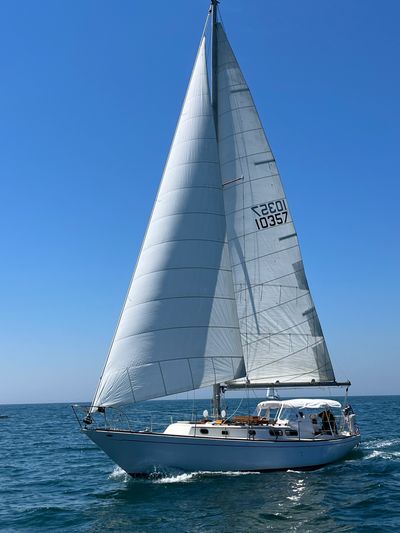

1971 Morgan 42 MKII
Hull Type:Fin with rudder on skeg
Rigging Type:Masthead Sloop
LOA:42.00 ft / 12.80 m
LWL:30.50 ft / 9.30 m
Beam:11.50 ft / 3.51 m
S.A. (reported):767.00 ft2 / 71.26 m2
Draft (max):6.00 ft / 1.83 m
Displacement:18,500 lb / 8,391 kg
Ballast:8,700 lb / 3,946 kg
S.A./Disp.:17.61
Bal./Disp.:47.03
Disp./Len.:291.09
Construction:FG
Ballast Type:Lead
Year Built:1971
Builder:Morgan Yachts (USA)
Designer:Charles Morgan
Auxiliary Power/Tanks (orig. equip.)
Make:Perkins
Model:M4108
Type:Diesel
HP:30
Fuel:30 gals / 114 L
Sailboat Calculations
S.A./Disp.:17.61 Bal./Disp.:47.03 Disp./Len.:291.09
Comfort Ratio:32.56 Capsize Screening Formula:1.74S#:1.86
Rig and Sail Particulars
I:50.00 ft / 15.24 m . J:16.75 ft / 5.11 m P:43.50 ft / 13.26 m E:16.00 ft / 4.88 m
S.A. Fore:418.75 ft2 / 38.90 m2 S.A. Main:348.00 ft2 / 32.33 m2
S.A. Total (100% Fore + Main Triangles)766.75 ft2 / 71.23 m2
S.A./Disp. (calc.):17.60 Est. Forestay Len.:52.73 ft / 16.07 m
